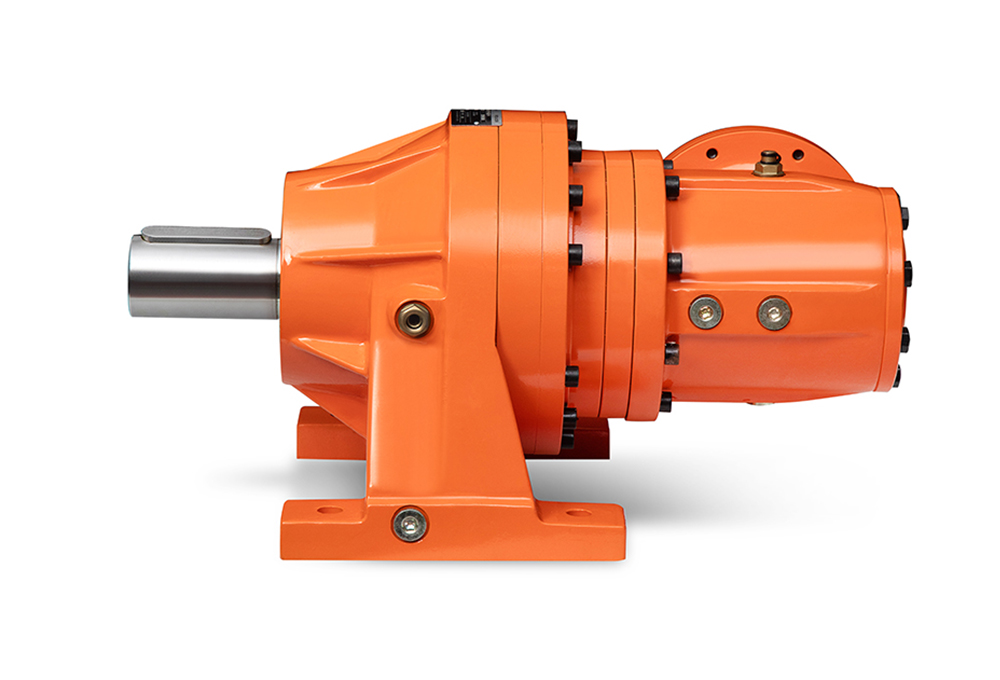

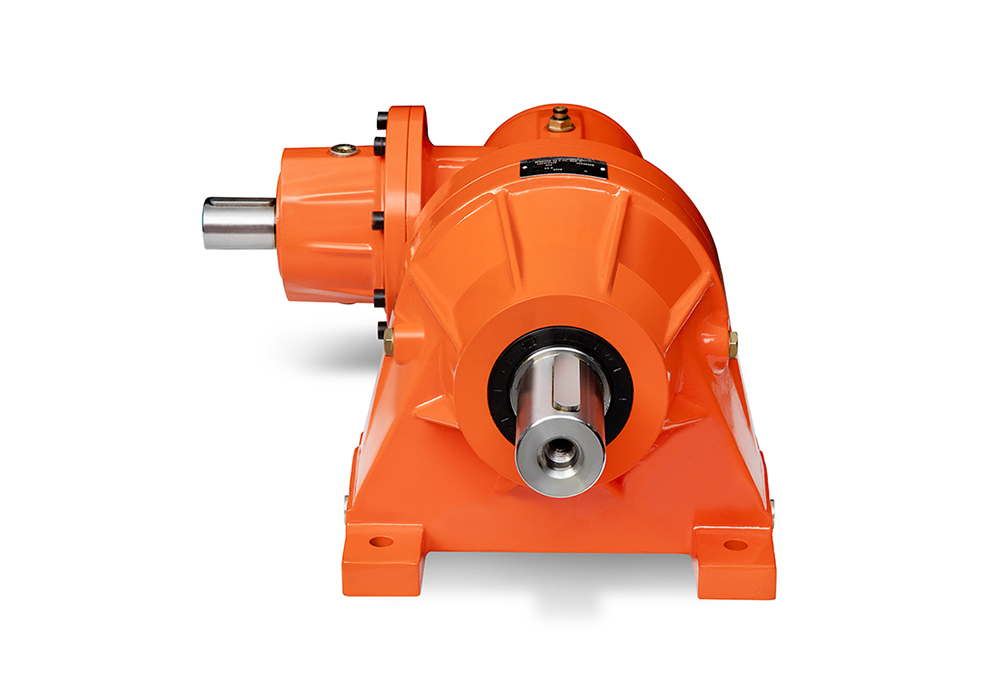

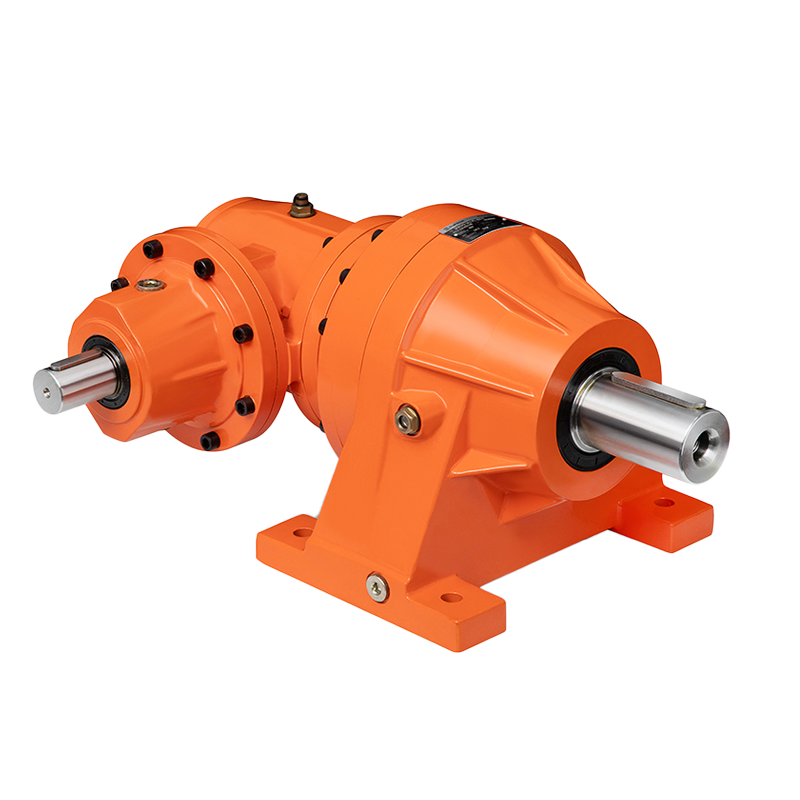

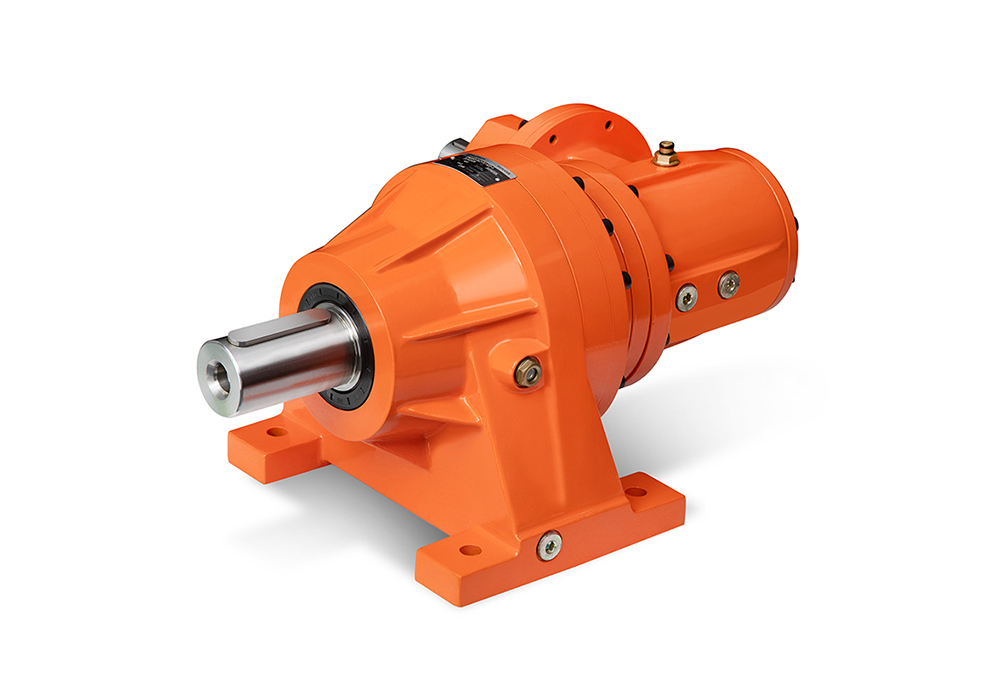

SPN..R

• Main parameter

  ModelSPN00～SPN21

  Transmission Ratio7.13～953

  Input power0.25~200kW

  Output torque500Nm～520000Nm

• Main features

  The SPN series features a compact, lightweight design with high load‑carrying capacity and extended service life. It operates smoothly and quietly, delivers high output torque and efficiency over a wide speed ratio, ensures reliable and safe performance, and supports modular installation for flexible integration

• Main accessories

  ◎ Small gear
  ◎ Key rod
  ◎ Sleeve coupling
  ◎ Contracting disc ◎ Flange

• Motor selection

  ◎ Three-phase asynchronous motor
  ◎ Braking motor, variable frequency motor
  ◎ Variable frequency braking motor
  ◎ Two-speed motor
  ◎ Marine motor
  ◎ Explosion-proof motor

• Mounting Option

  ◎ Floor-standing type
  ◎ Flange

• Output type

  ◎ PC base-mounted with solid shaft output using flat key
  ◎ PZ base-mounted with solid shaft output using spline
  ◎ MC solid shaft output using flat key
  ◎ MZ solid shaft output using spline
  ◎ HC heavy-duty solid shaft output using flat key
  ◎ HZ heavy-duty solid shaft output using spline
  ◎ FP accessory splined hollow shaft output
  ◎ FZ spline hollow shaft output
  ◎ VK reinforced flat key solid shaft output for mixer

• Input type

  ◎ AD Flat key input shaft
  ◎ FAD Fan-equipped solid shaft input
  ◎ AM IEC Motor Connection
  ◎ AQA Servo Motor Connection
  ◎ ABA Hydraulic Motor Connection
  ◎ RV Reducer Input
  ◎ RFKS Gear Reducer Input

• Product application

  ◎ Shipbuilding industry
  ◎ Battery industry
  ◎ Oil drilling
  ◎ Environmental protection equipment
  ◎ Coal mining equipment
  ◎ Drilling machine
  ◎ Underwater optical cable
  ◎ Wind power generation
  ◎ Livestock equipment
