Reliable transmission and excellent performance

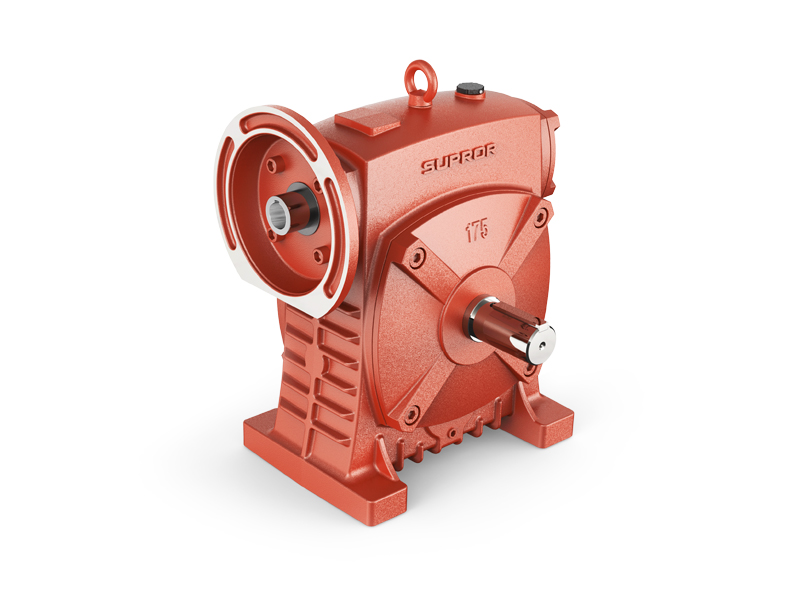

WP is the first type gear reducer that produced by SUPROR. Itis composed of a pair of meshing worm gears, worms, etc., and is put in arigid, sealed housing. It is a separate component in the machine. It iscommonly used as a deceleration transmission device between the prime mover andthe work machine.
Output Torque:28-3030Nm
Input type:basic type (single input shaft) , IEC motor flange
Output type:solid shaft output, hollow shaft output
Reduction ratio:combination of 10-60 (singe stage) double stage combination can make speed ratio up to -3600
Rated power:0.06-15KW
WP worm gear reducer is cast iron reducer witha strong hardness housing. This model has the advantages of compact structure,stable transmission, small vibration, small shock and low noise, largereduction ratio and wide versatility, and can be used with various mechanicalequipments.
