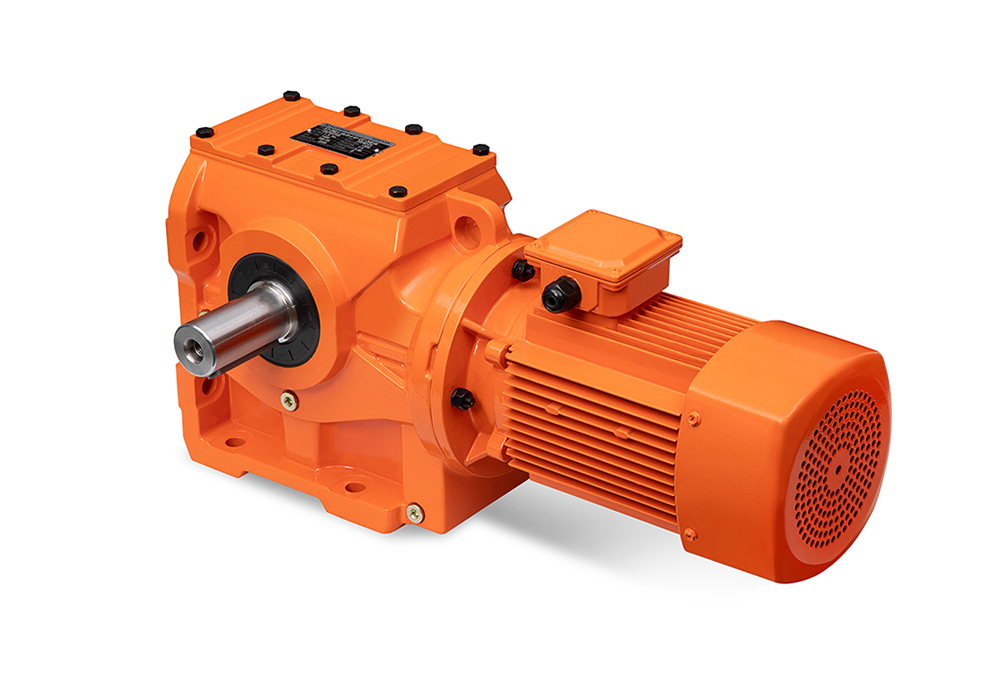

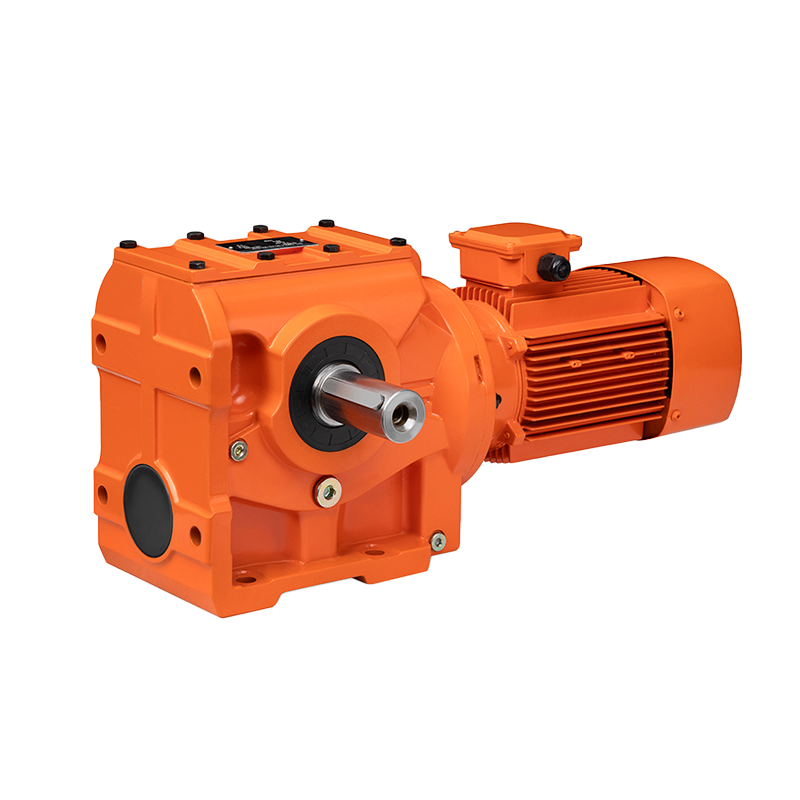

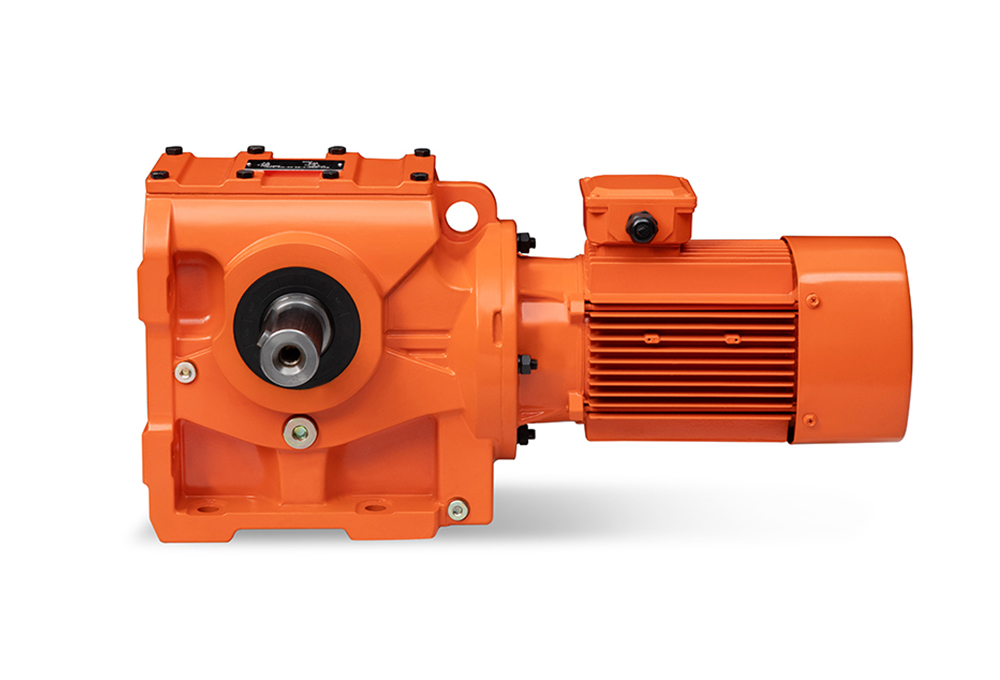

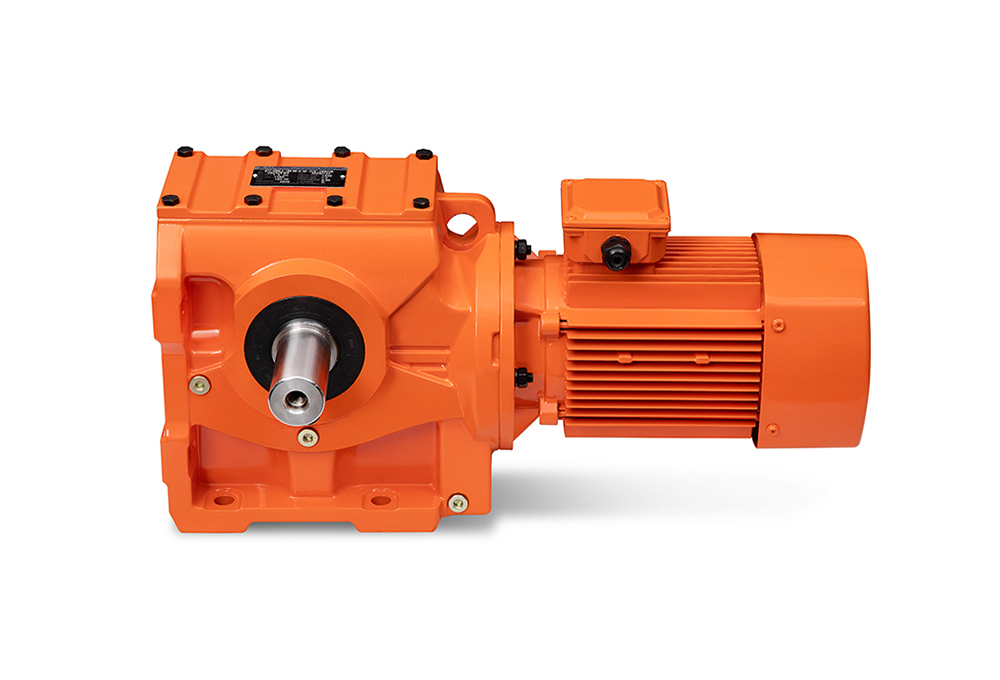

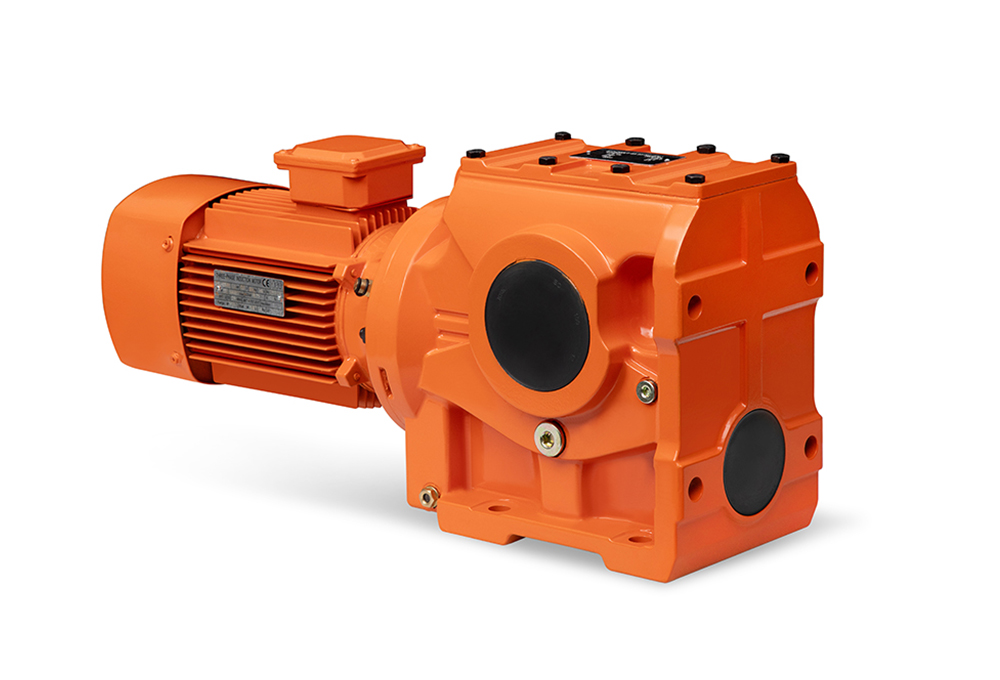

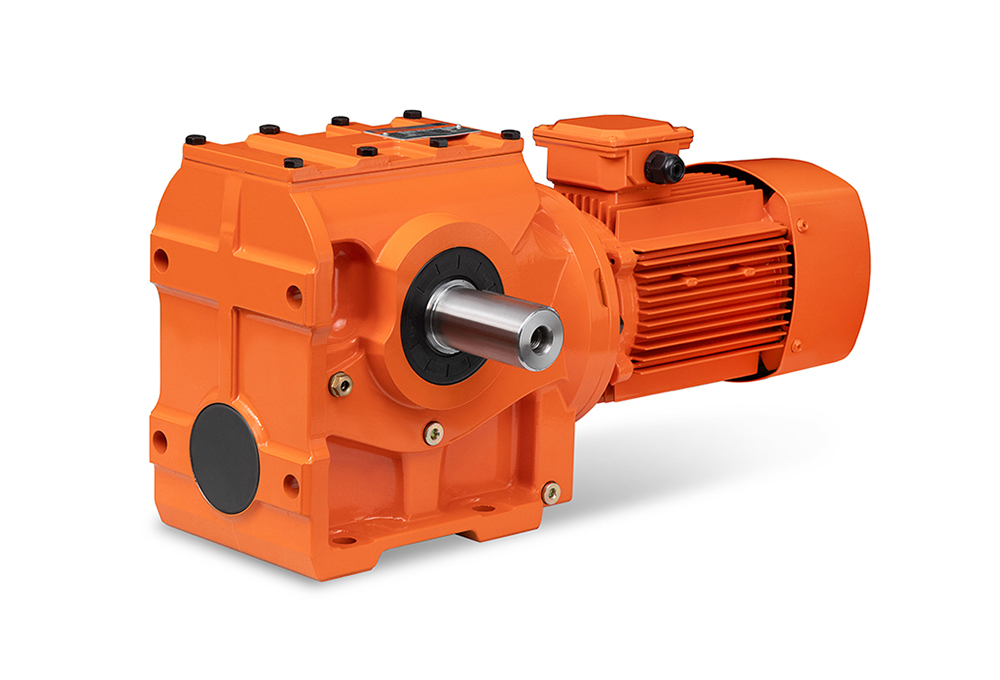

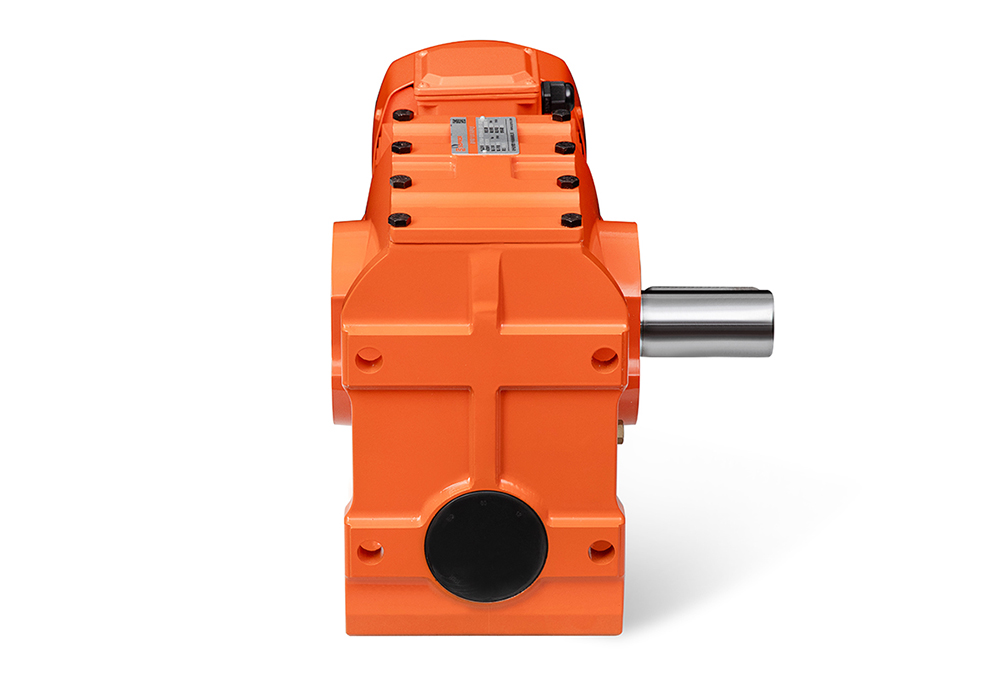

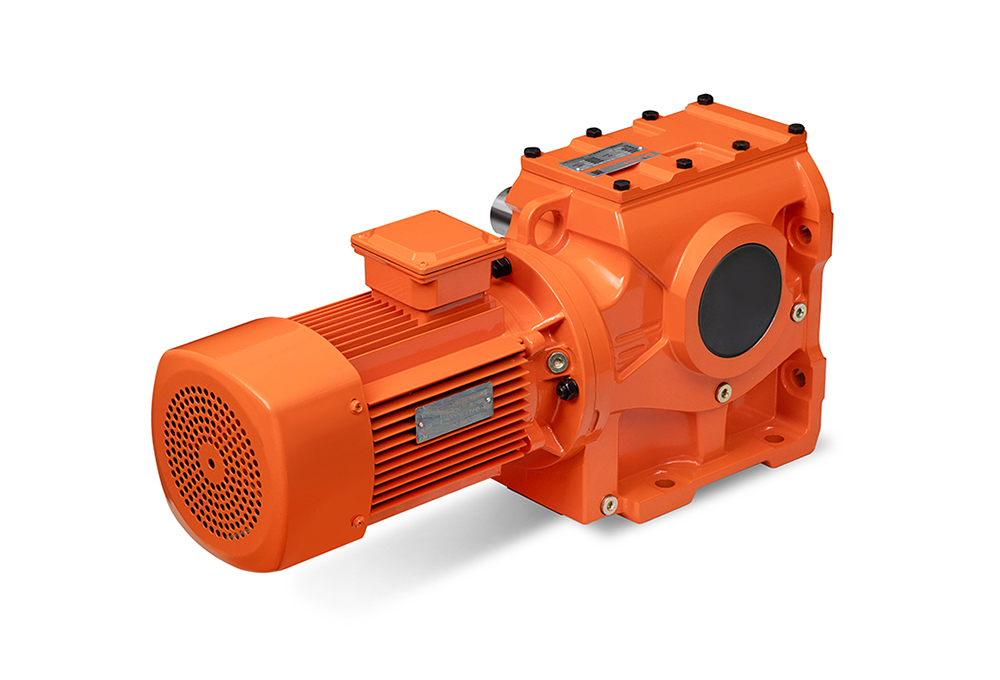

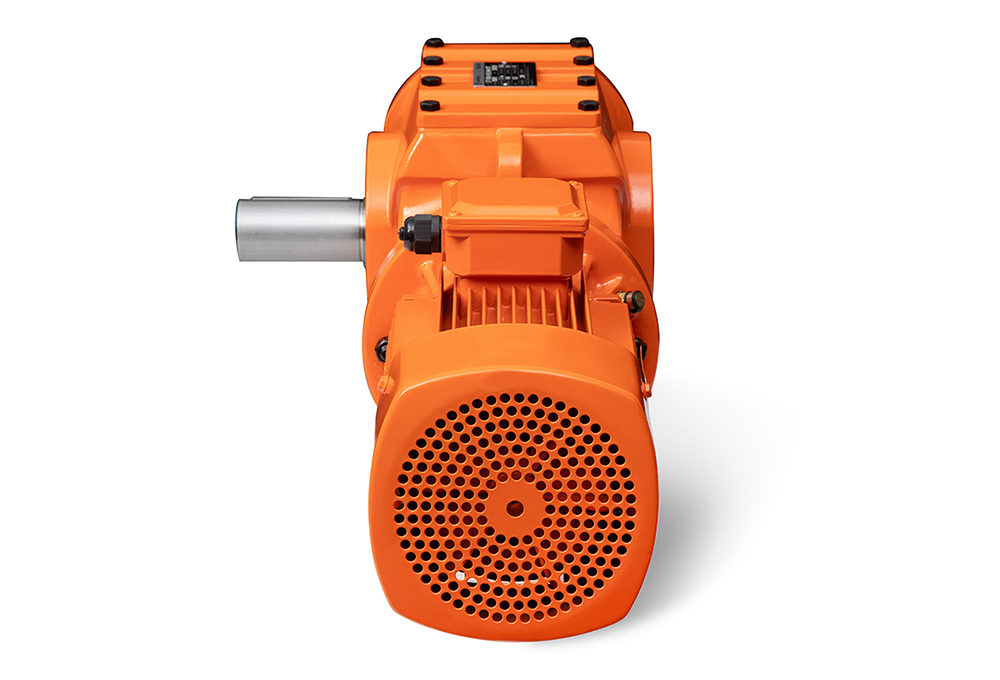

S Series

• Main parameter

  ModelS37～97

  Transmission Ratio6.8～288

  Input power0.12～200kW

  Output torque90～4000 NM

• Main features

  The input and output spaces are interlaced, maximizing the utilization of the box space. The structure is compact. The hardened tooth surfaces can transmit large torque. The high-precision gears and worm gears ensure smooth operation, low noise and long service life.

• Main accessories

  ◎ Flange
  ◎ Torque arm
  ◎ Direction-changing shaft
  ◎ Locking disc

• Motor selection

  ◎ Thermistors and constant temperature sensors
  ◎ Independent forced cooling
  ◎ Brake
  ◎ Incremental positive/negative cosine single/multi-turn absolute value encoder
  ◎ Anti-condensation heater
  ◎ Check valve

• Mounting Option

  ◎ Base installation
  ◎ Flange installation

• Output type

  ◎ Solid shaft
  ◎ Hollow shaft
  ◎ Keyed hollow shaft
  ◎ Hollow shaft locking disc

• Input type

  ◎ Direct connection motor
  ◎ IEC standard motor
  ◎ Servo motor
  ◎ Solid input shaft

• Design scheme

  ◎ S. Bottom-angle installation of helical gears - Turbine worm gear reducer ◎ SF.. B5 Flange-mounted helical gear - turbine worm gear reducer
  ◎ SAF. B5 Flange hollow shaft with helical gear - turbine worm gear reducer
  ◎ SHF. B5 Flange hollow shaft with locking disc and helical gear - turbine worm gear reducer
  ◎ SA. Hollow shaft with helical gear - turbine worm gear reducer
  ◎ SH. Hollow shaft with locking disc and helical gear - turbine worm gear reducer
  ◎ SAZ. B14 Flange hollow shaft with helical gear - turbine worm gear reducer
  ◎ SHZ. B14 Flange hollow shaft with locking disc and helical gear - turbine worm gear reducer

• Product application

  ◎ Ship equipment
  ◎ Lithium battery industry
  ◎ Oil drilling
  ◎ Environmental protection equipment
  ◎ Coal mine equipment
  ◎ Undersea optical cable
  ◎ Livestock equipment
  ◎ Textile machinery
  ◎ Pharmaceutical machinery
  ◎ Logistics transportation
