F Series

• Main parameter

  ModelF37~157

  Transmission Ratio3.77～281.71

  Input power0.12~200kW

  Output torque200~18000 Nm

• Main features

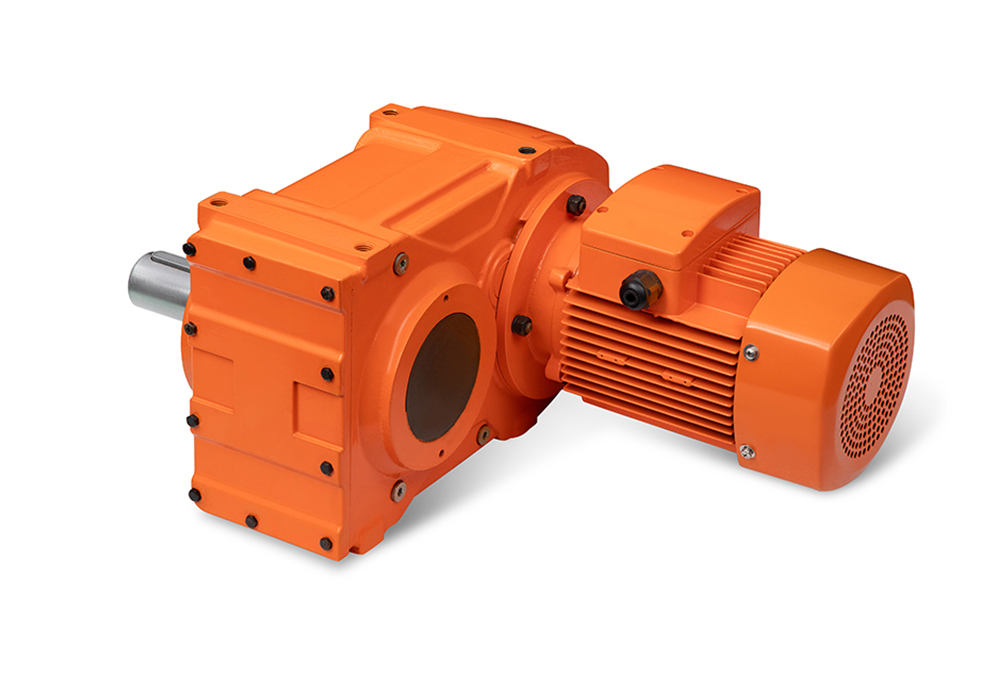

  F series parallel shaft helical gear motor delivers high torque capacity, smooth and quiet operation, and long service life, while presents a slim and streamlined appearance. The one‑piece cast housing offers excellent structural rigidity, strong shaft strength and extended bearing life. It also supports high permissible radial loads.

• Main accessories

  ◎ Flange
  ◎ Torque arm
  ◎ Direction-changing shaft
  ◎ Locking disc

• Motor selection

  ◎ Thermistors and constant temperature sensors
  ◎ Independent forced cooling Brake
  ◎ Incremental sine/cosine single/multi-turn absolute value encoder
  ◎ Anti-condensation heater
  ◎ Check valve

• Mounting Option

  ◎ Base installation
  ◎ Flange installation

• Output type

  ◎ Solid shaft
  ◎ Hollow shaft
  ◎ Keyed hollow shaft
  ◎ Hollow shaft locking disc

• Input type

  ◎ Direct connection motor
  ◎ IEC standard motor
  ◎ Servo motor
  ◎ Solid input shaft

• Design scheme

  ◎ F. Install parallel-axis helical gear reducer at the bottom corner
  ◎ FA.. B Bottom hollow shaft is installed with a parallel shaft helical gear reducer.
  ◎ FH.. B Bottom angle hollow shaft locking disc installs the hollow shaft bevel gear reducer
  ◎ FF.. B5 Flange-mounted Parallel-axis Helical Gear Reducer
  ◎ FAF.. B5 flange hollow shaft installation of parallel shaft bevel gear reducer
  ◎ FE. B5 flange hollow shaft locking disc installation of parallel shaft bevel gear reducer
  ◎ FA. Hollow shaft installation of parallel shaft bevel gear reducer
  ◎ FH. Hollow shaft locking disc installation of parallel shaft bevel gear reducer
  ◎ FAZ.. B14 flange hollow shaft installation of parallel shaft helical gear reducer
  ◎ FHZ. B14 flange hollow shaft locking disc installation of parallel shaft helical gear reducer

• Product application

  ◎ Ship equipment
  ◎ Lithium battery industry
  ◎ Oil drilling
  ◎ Environmental protection equipment
  ◎ Coal mine equipment
  ◎ Undersea optical cable
  ◎ Livestock equipment
  ◎ Textile machinery
  ◎ Pharmaceutical machinery
  ◎ Logistics transportation
