Product highlights
High Efficiency

Larger output gear ratio, reaching 94%-98%

Compact Structure

Rationalized structure layout saves space

Large Torque

Torque range 1000-500000 Nm

Diversified Product Structure

There are 18 models in the SPN series, each model offers a variety of options.

SPN ..L..HZ..FAD..O
  • Product introduction
  • Product parameters
  • Product features

SPN series planetary reducer adopts two structural forms of coaxial type and Angle type, and 1-4 level transmission.

Designed for infinite fatigue life according to a given torque. The box is made of spheroidal cast iron with high load capacity, the sun wheel and the planet wheel are meshing with straight teeth, and the gears and bevel gears are modified and grinded, and are hardened. The inner gear rings are quenched and tempered at high temperature. The compact, space-saving design eliminates the need for couplers and fitting flanges.


Product Specification:00-21

Transmission ratio:3.4-5000

Output Torque:1000-500000 Nm

Design Style:foot mounting, flange mounting

Input type:IEC and NEWA motor interface, inch or metric solid input shaft, can be equipped with a cooling fan.

Output type:flat key solid shaft, spline solid shaft, spline hollow shaft, locking disc hollow shaft

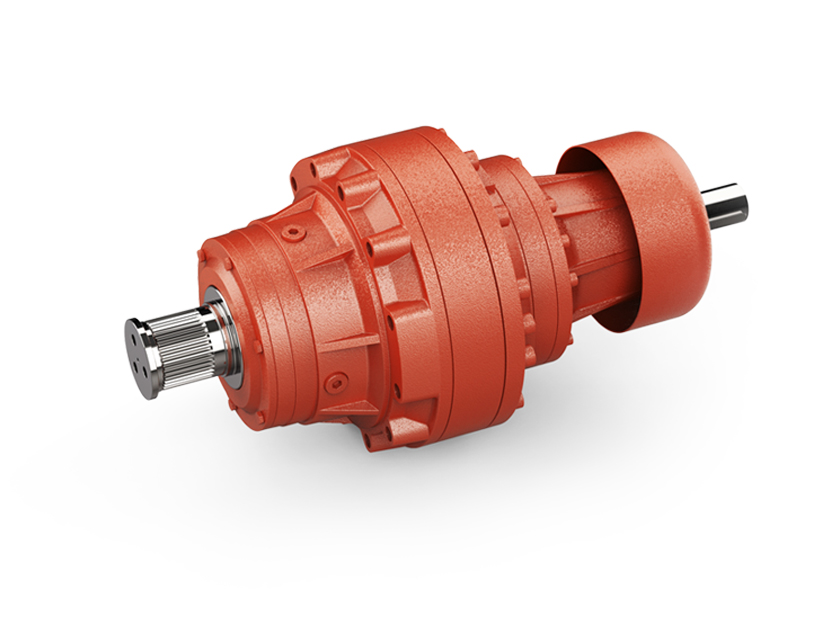

SPN...L.. Coaxial: The input and output are onthe same axis, 1-4 grade transmission ; it can be flexibly combined intomultiple types. And also can be combined with helical gearbox products to makethe transmission ratio larger, the application range wider, and is convenientfor customers to choose.


Similarly, when the standard series does notmeet the needs of our customers, we can provide you with the best solution forcustomizing.
